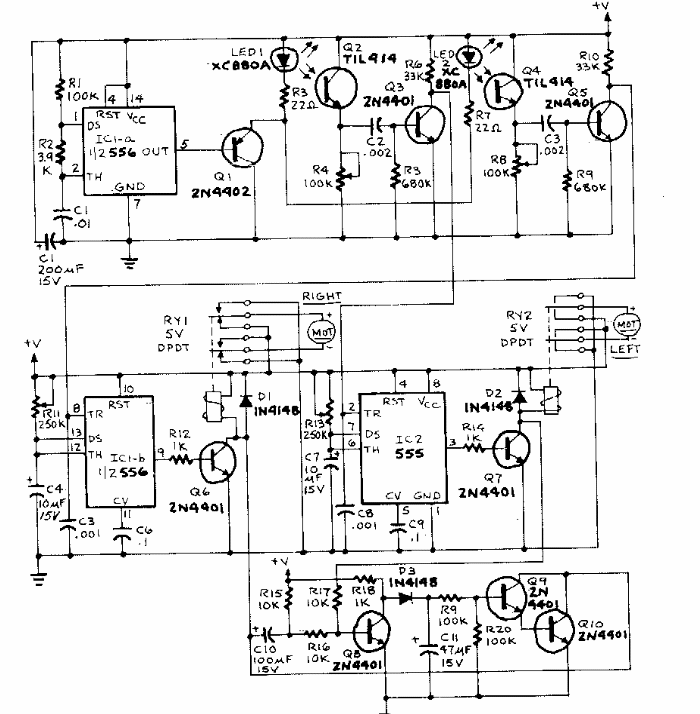

This sensor circuit for a small robot was found in a Popular Electronics from the 90s. The circuit oscillates at a frequency of 1 kHz by activating the infrared LEDs that illuminate the path of the small robot.
| Clique na imagem para ampliar |
Robot eyes (CB7262E)
- Details
- Written by: Newton C. Braga
