Bipolar Current Level Detector (CB6629E)

Details
Written by: Newton C. Braga

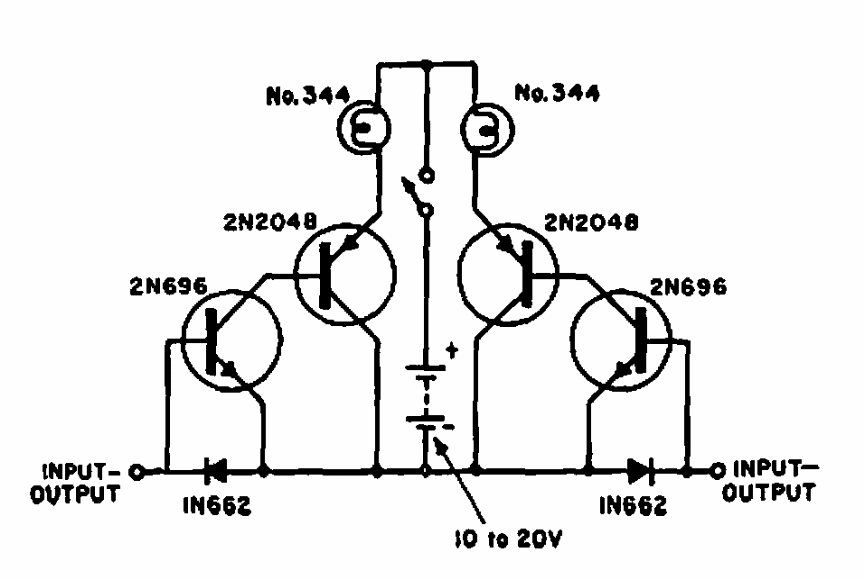

     The circuit shown was found in an American documentation from 1964. The circuit uses transistors of the time and the indicators are small lamps.
