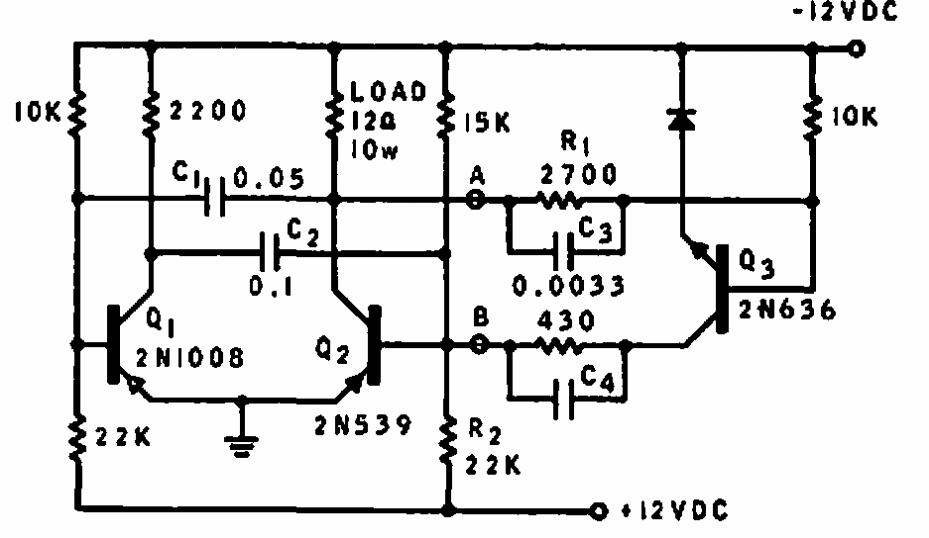

Flip Flop with regenerative output (CB6816E)

Details
Written by: Newton C. Braga



    We found this circuit in an old documentation. The circuit can supply loads up to 10W with the original components. The circuit can be designed based on modern components.
