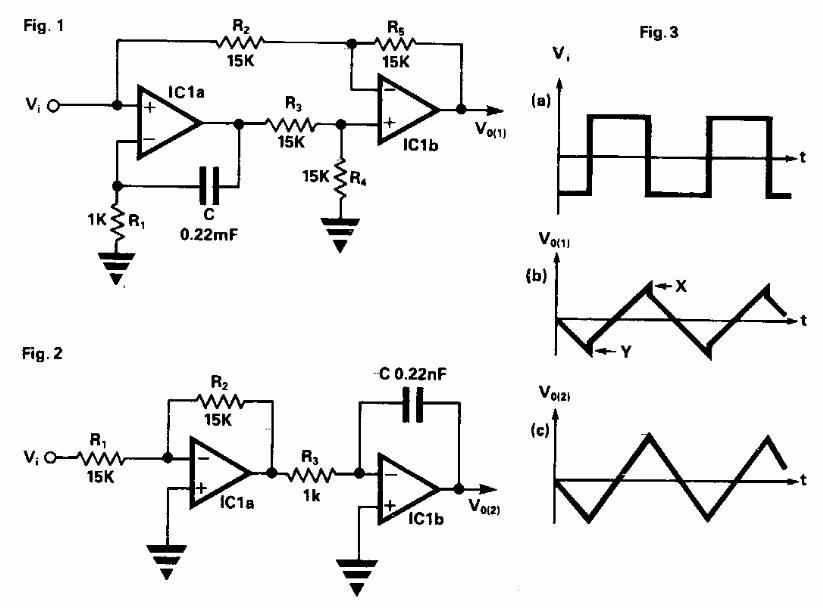

Obtained from an Electronic Engineering of the 90s, these circuits can be applied to almost any operational amplifier. Signal shapes are given next to the diagram.
| Clique na imagem para ampliar |
Non-inverting integrators (CB6842E)
- Details
- Written by: Newton C. Braga
