Rain alarm (CB6955E)

Details
Written by: Newton C. Braga

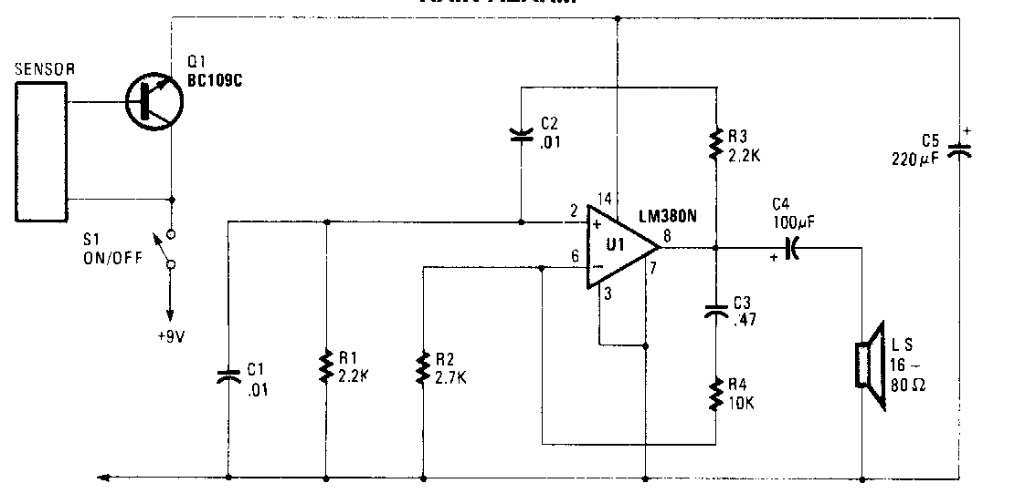

     The sensor of this circuit found in Popular Electronics can be formed by a piece of fabric between two bare wire screens. When wet, the fabric will pass the current between the screens, triggering the alarm.
