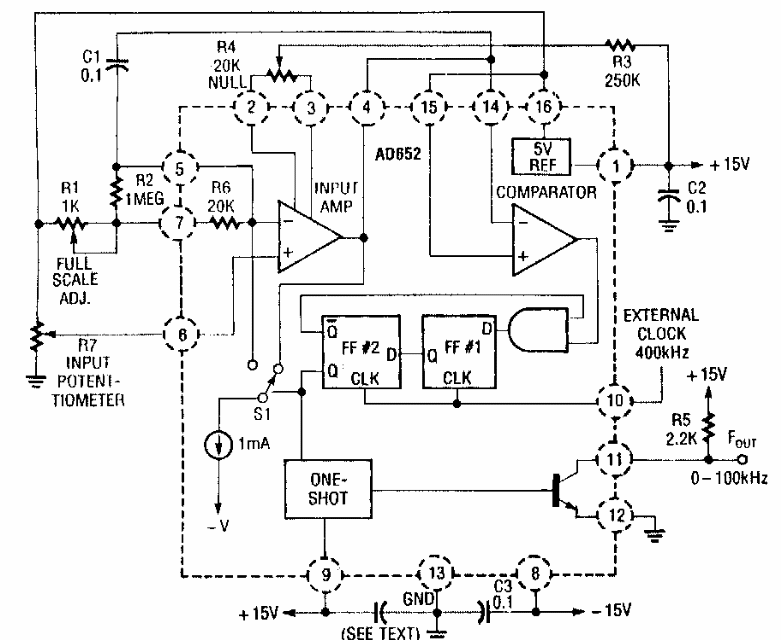

This application circuit for the AD6521C was found in Radio Electronics from the 90's. The circuit can be implemented with a modern equivalent converter. The output ranges from 0 to 100 kHz.
| Clique na imagem para ampliar |
Voltage to frequency converter with potentiometer (CB6995E)
- Details
- Written by: Newton C. Braga
