330 Degree Control with SCR (CB6565E)

Details
Written by: Newton C. Braga

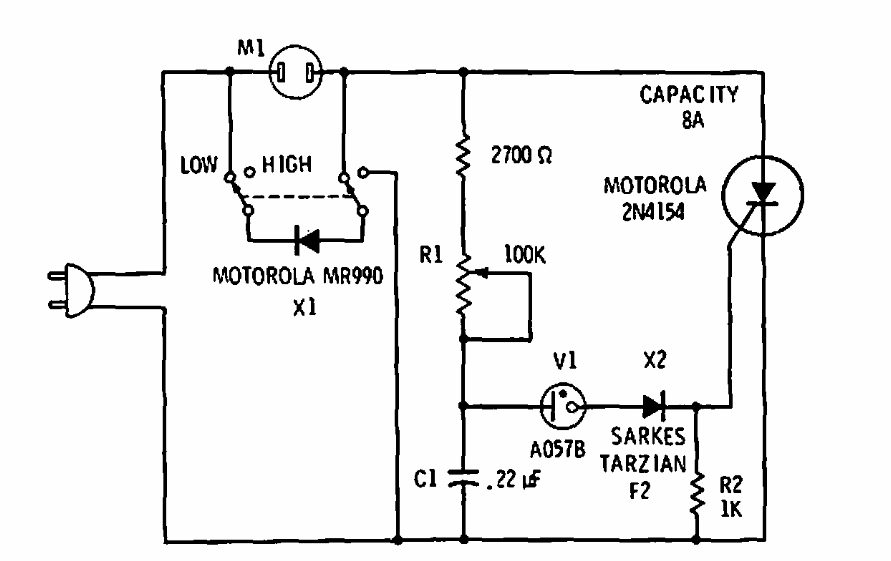

    Suggested by an American documentation for 1969 neon lamps, this circuit provides SCR control with expanded phase angle range.
