SCR mechanical drive (CB6572E)

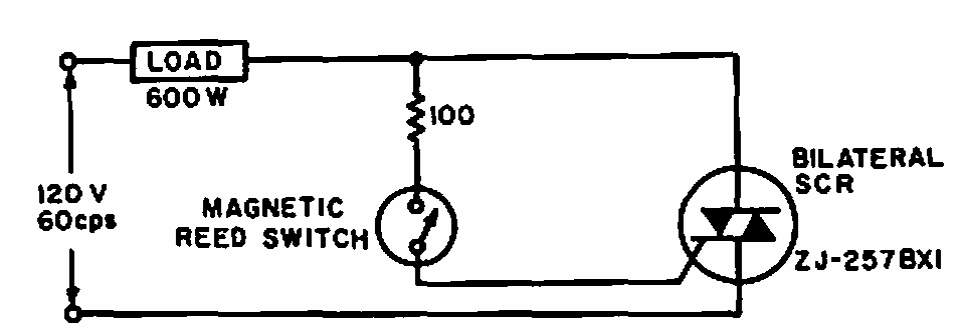

This contact or reed switch actuation was found in a 1964 Electronic Design. The circuit can be used with sensors and the triac is load dependent.
