Digital phase meter (CB7374E)

Details
Written by: Newton C. Braga

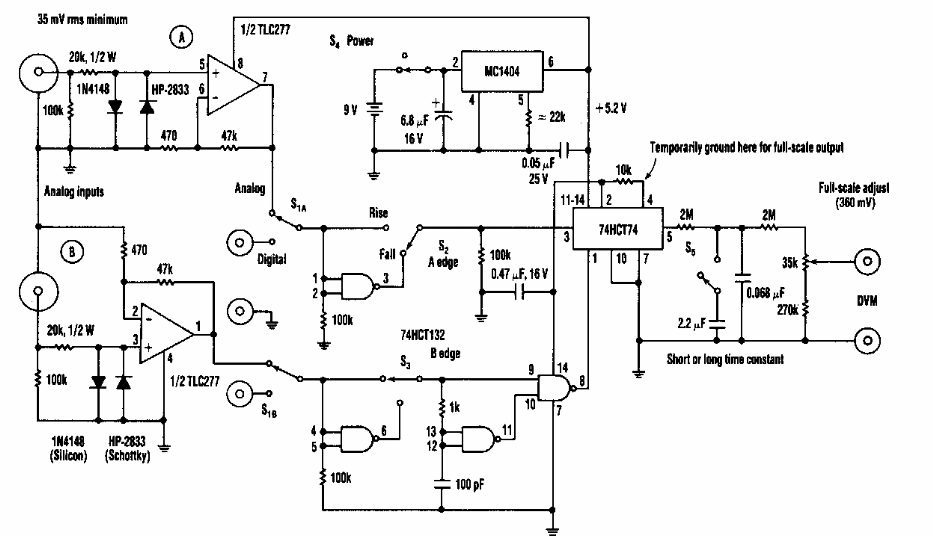

     Found in an Electronic Design from the 90s, this circuit measures the phase difference between two signals using an electronic multimeter. The circuit makes use of components of the time.
