Seismic Amplifier (CB6207E)

Details
Written by: Newton C. Braga

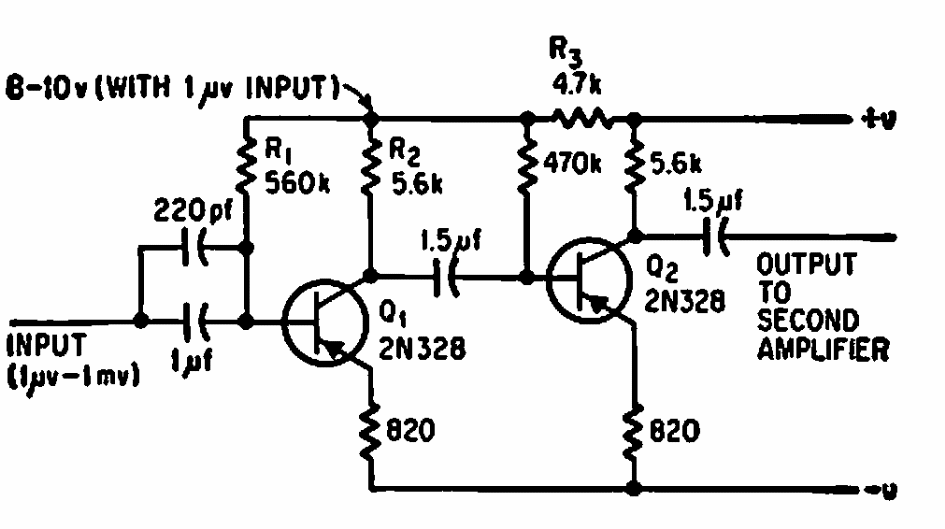

     This very low frequency amplifier has a gain of 1,000 and was found in a 1967 documentation. The circuit is suitable for detecting explosions, distant echoes and seismic vibrations.




| Clique na imagem para ampliar |
