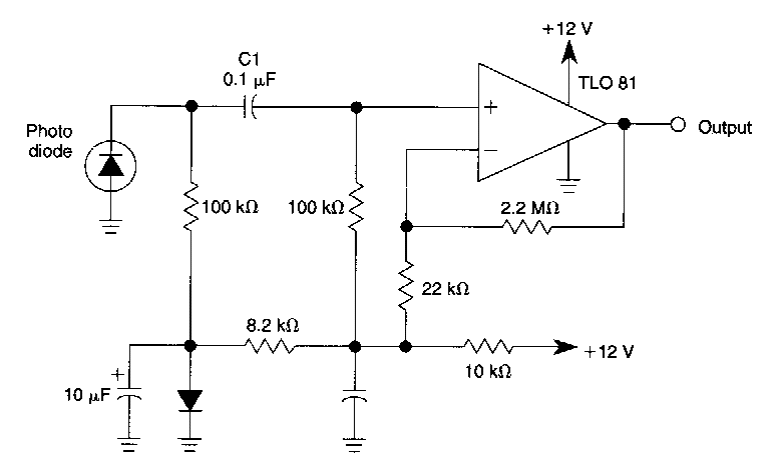

Found in a 1990s American technical brochure, this circuit is intended for alarms that use as photodiode sensors. The circuit has a frequency response of up to 20 kHz. The gain is 40 dB.
| Clique na imagem para ampliar |
Light Sensor Preamplifier (CB6434E)
- Details
- Written by: Newton C. Braga
