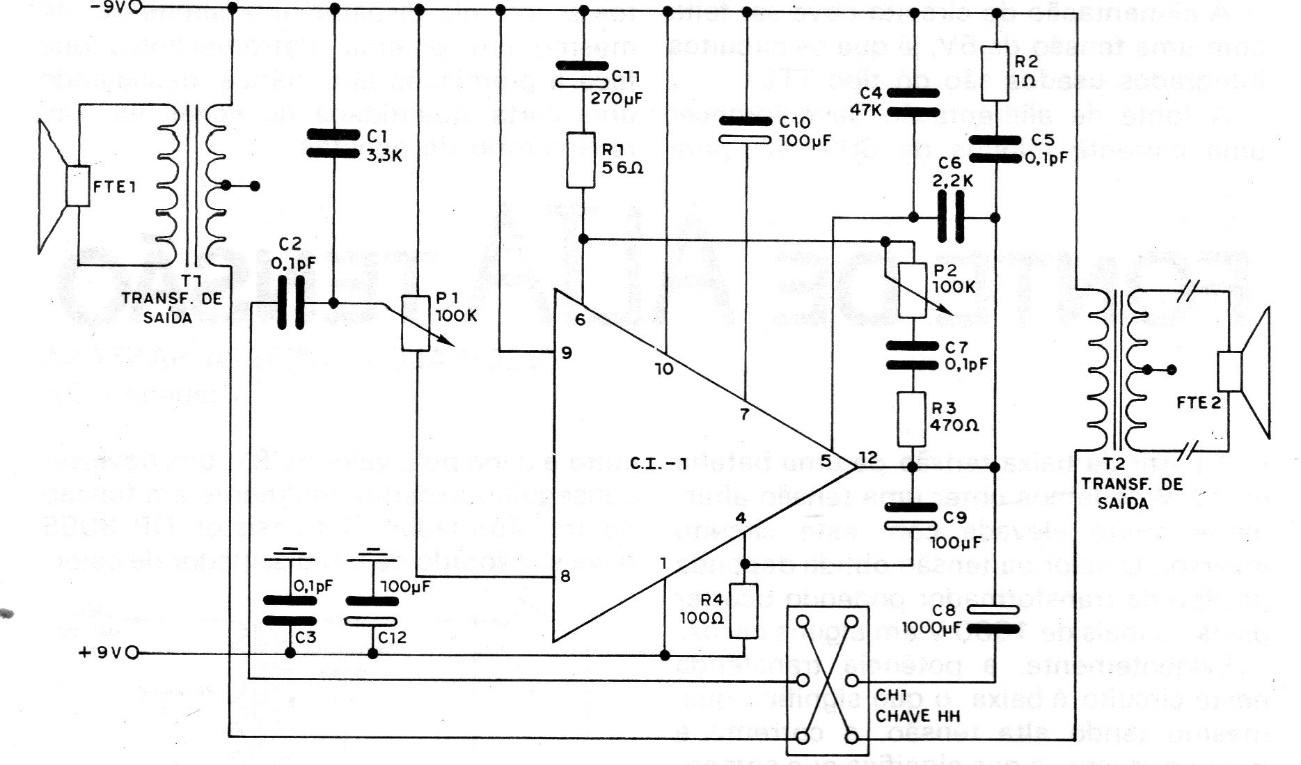

The TBA810 integrated circuit used in this 1982 project is not very common today, but if found it results in this excellent intercom with a good output power (reaching 7 W). The circuit must be powered by a 9 to 12 V source with at least 1 A. The output transformers are 200 ohms x 8 ohm.
