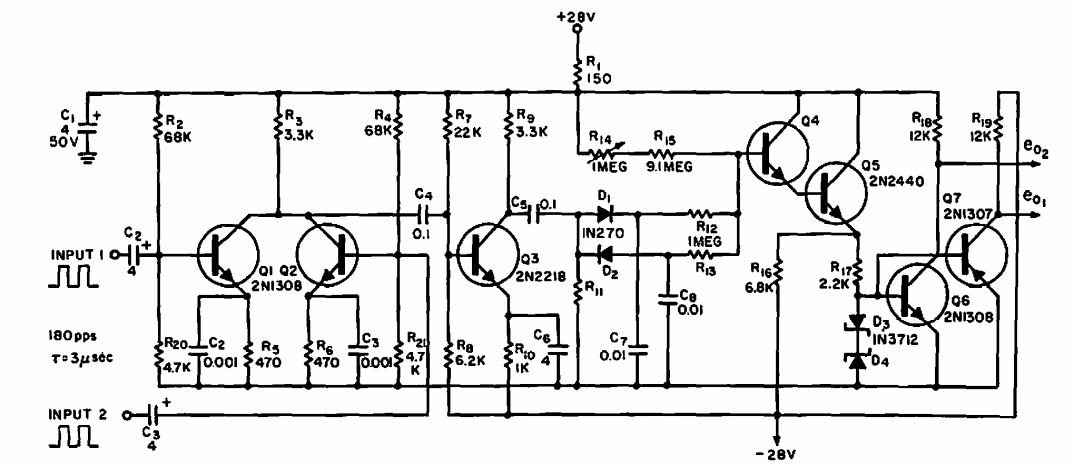

Found in a 1964 Electronic Design this circuit compares two signals by providing the inverse of the algebraic sum of their frequencies. The circuit can be made with modern equivalent transistors.
| Clique na imagem para ampliar |
Algebraic Comparator (CB6492E)
- Details
- Written by: Newton C. Braga
