Current Booster (CB6973E)

Details
Written by: Newton C. Braga

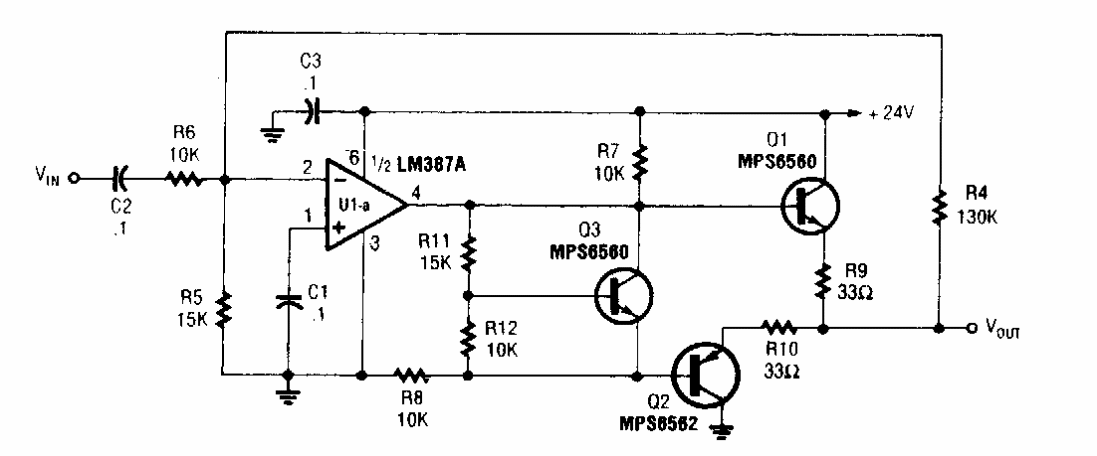

     We found this circuit in a Popular Electronics from the 90s. Transistors can be modern equivalents. Observe the high supply voltage.




| Clique na imagem para ampliar |
