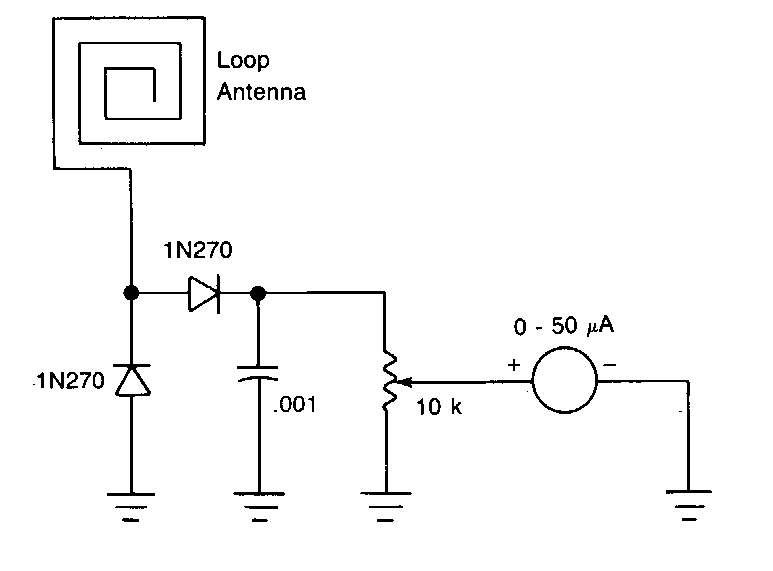

Field strength meter (CB6234E)

Details
Written by: Newton C. Braga



     This circuit was found in a 1980s documentation. The diodes may be general purpose diodes such as 1N34 or 1N60 and the indicator may be the lowest current range of a multimeter.
