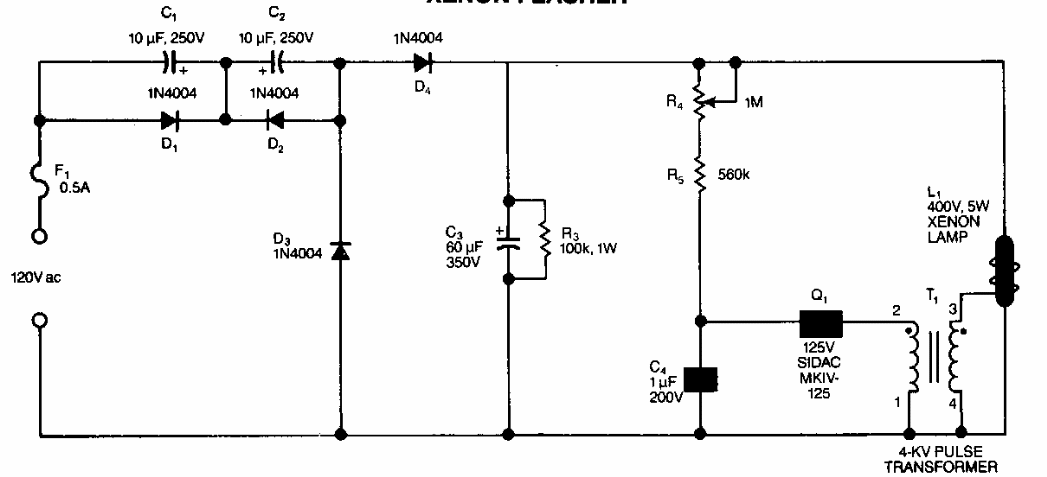

Found in a 90's EDN, this xenon pulsator uses a Sidac. We already used this setting in an article where we taught how to use Sidac. The 60 uF capacitor can be replaced by 47 uF or 50 uF equivalent which is standard value.
| Clique na imagem para ampliar |
