Theremin (CB6703E)

Details
Written by: Newton C. Braga

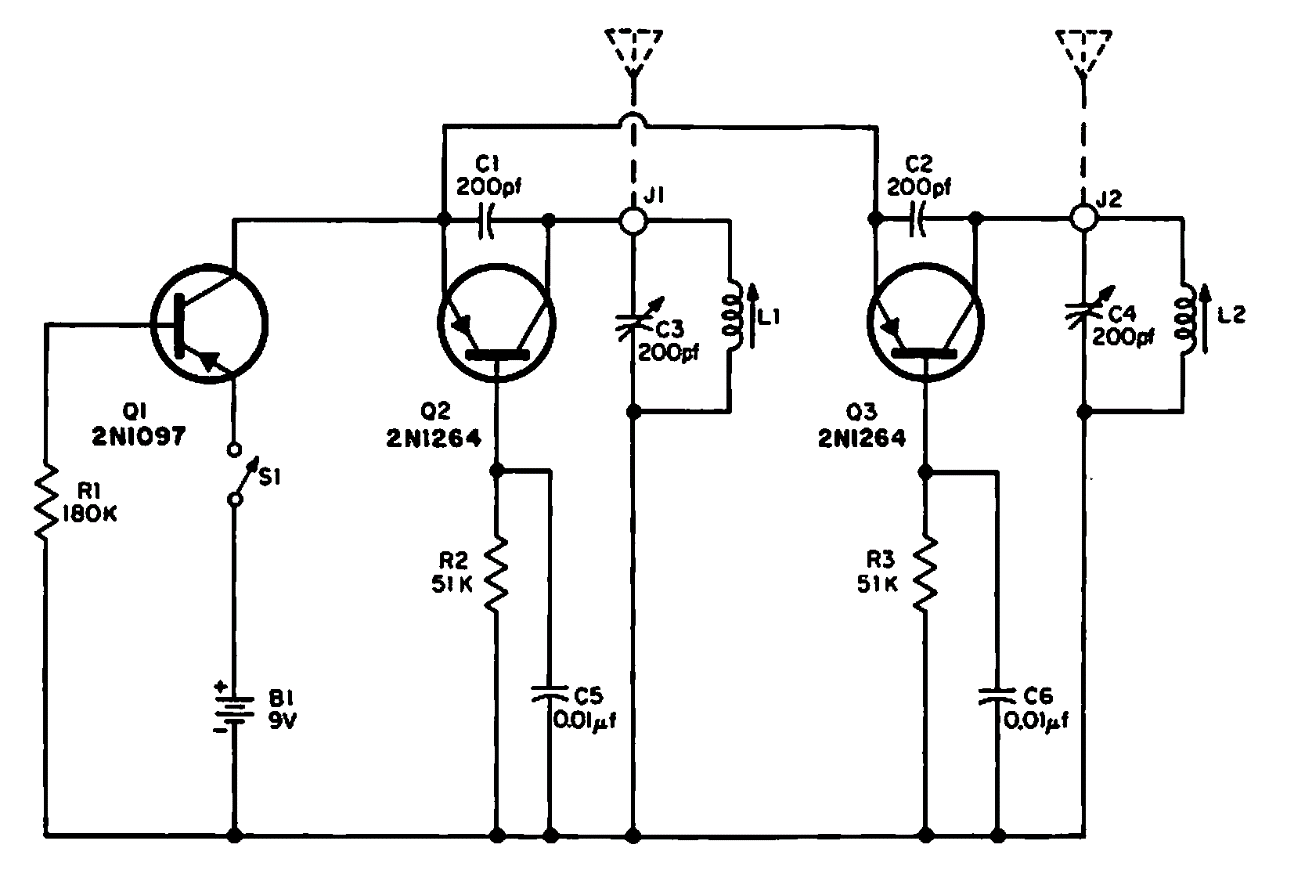

    The signals from this circuit obtained from the 1965 Radio Shack documentation are picked up from a medium wave receiver. L1 and L2 have 80 to 100 turns of yarn 28 on a ferrite rod.
