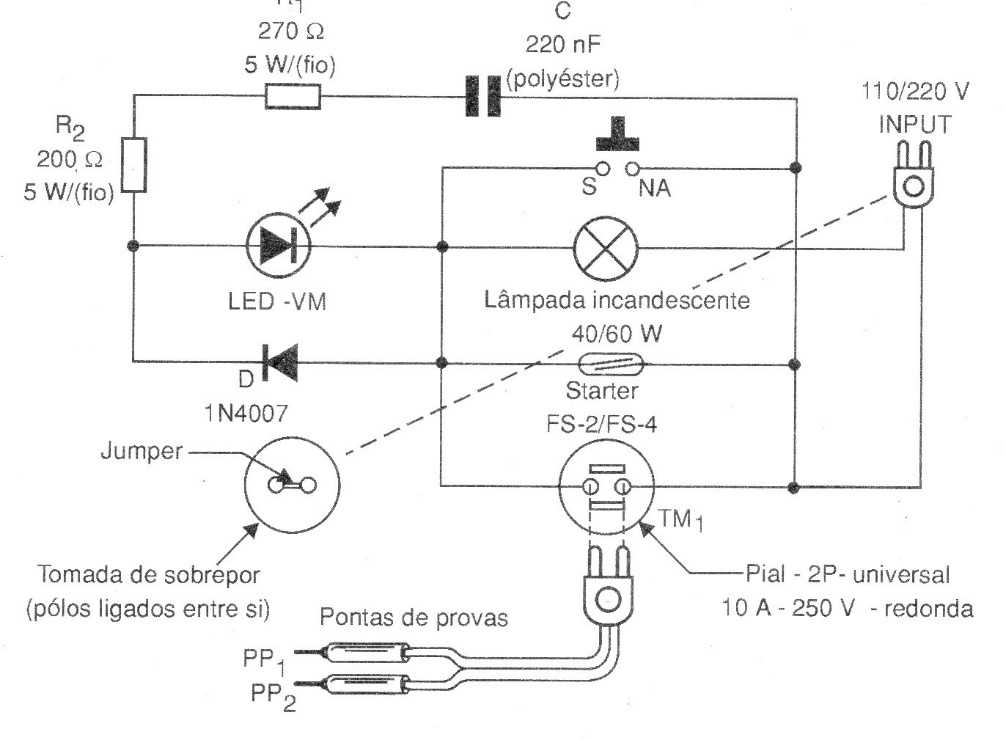

We found this circuit in a 2004 documentation. The circuit consists of a standard lamp for testing in general equipment powered by the power network and has several features such as a pressure switch for direct application of voltage to the equipment under test after it is found that it it is not shorted.
| Clique na imagem para ampliar |
