Tuned optical sensor (CB7246E)

Details
Written by: Newton C. Braga

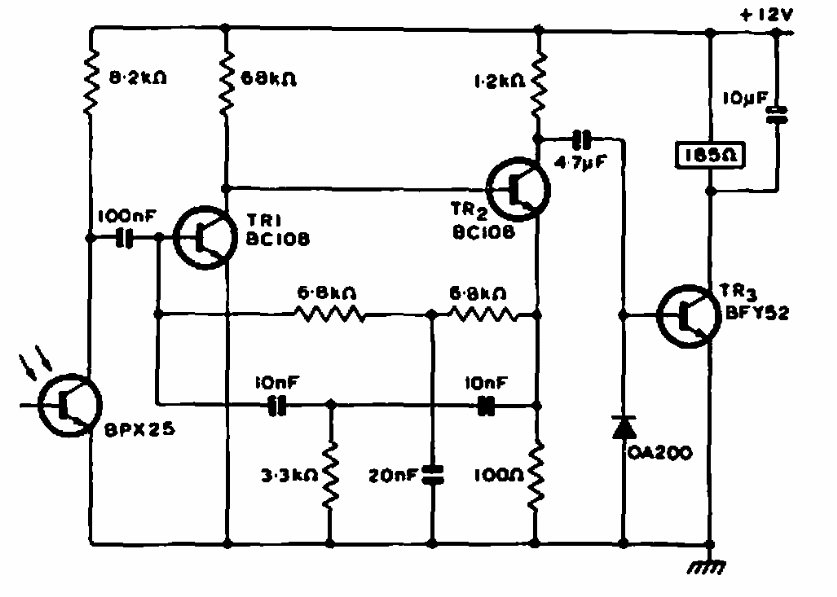

     This 1967 Philips circuit recognizes a light signal (visible or infrared) modulated by tone. The circuit makes use of components of the time that are equivalent to the current BCs.
