DC motor proportional control (CB7283E)

Details
Written by: Newton C. Braga

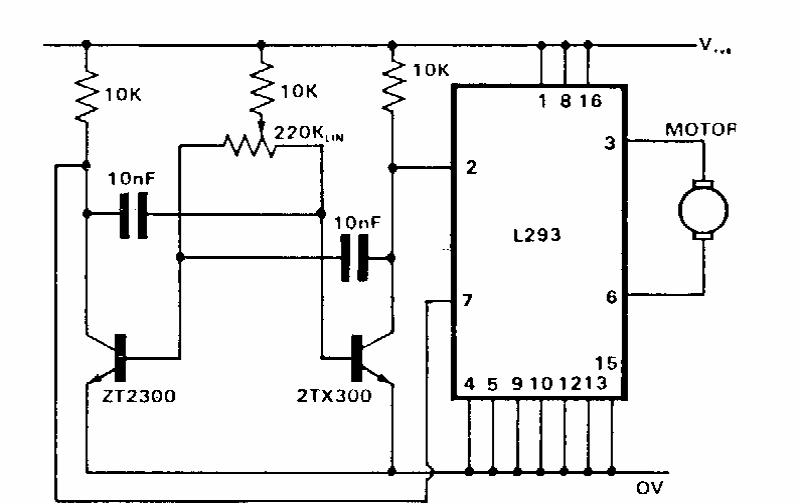

    This bidirectional motor control was found in an 80's Electronic Engineering. The circuit uses a component of the time and is suitable for motors up to 1 A.
