Unit Gain MOSFET Amplifier (CB6128E)

Details
Written by: Newton C. Braga

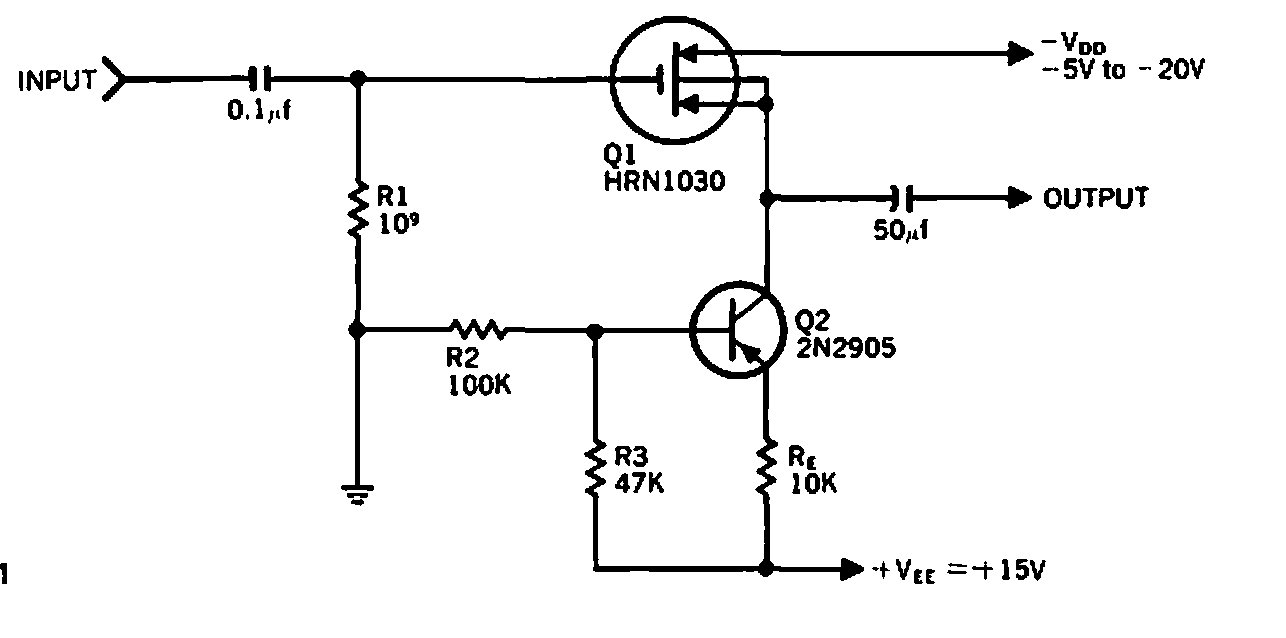

    This Hughes circuit is from 1968. Equivalent modern components can be used. The input impedance is 1000 M ohm.
