Hearing Aid Amplifier (CB6206E)

Details
Written by: Newton C. Braga

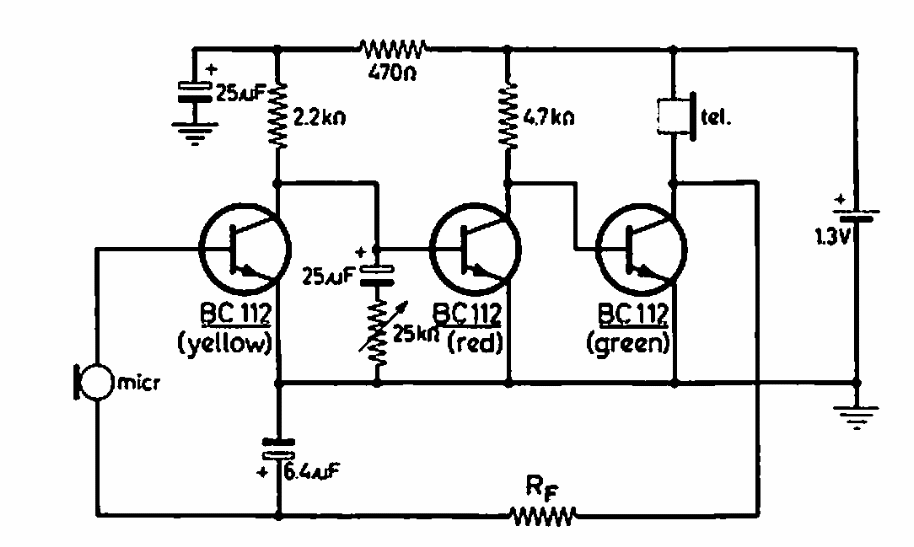

     This circuit was found in a Philips documentation from 1966. The circuit provides 1 mW with a power supply of only 1.3 V. Transistors support current BC series equivalents.
