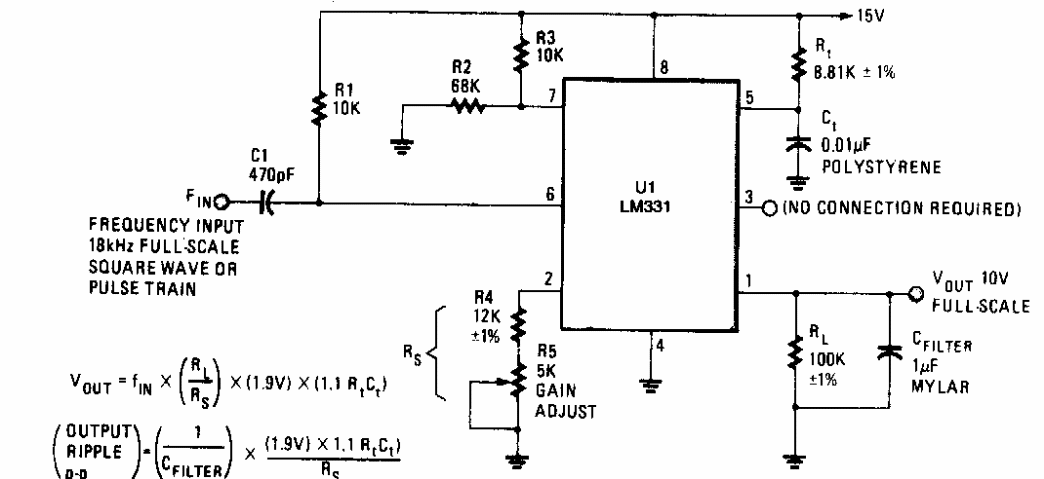

Frequency to voltage converter (CB6993E)

Details
Written by: Newton C. Braga



    Found in Popular Electronics from the 90s, this circuit can be used in tachometers. The integrated circuit is not a common component today.
