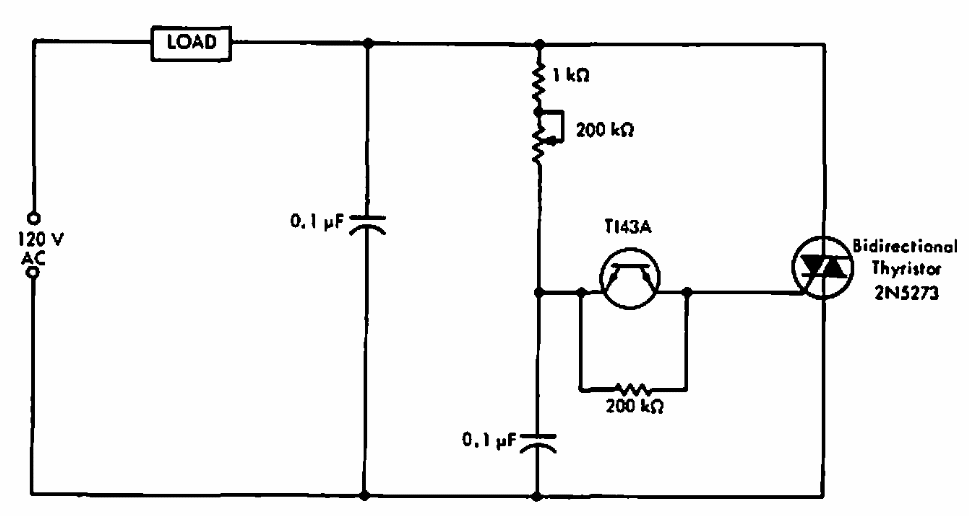

Triac power control (CB6563E)

Details
Written by: Newton C. Braga



     This version of triac control is from a 1968 documentation. The circuit uses components from the era that can be replaced with modern equivalents.
