Locked static switch (CB6814E

Details
Written by: Newton C. Braga

)

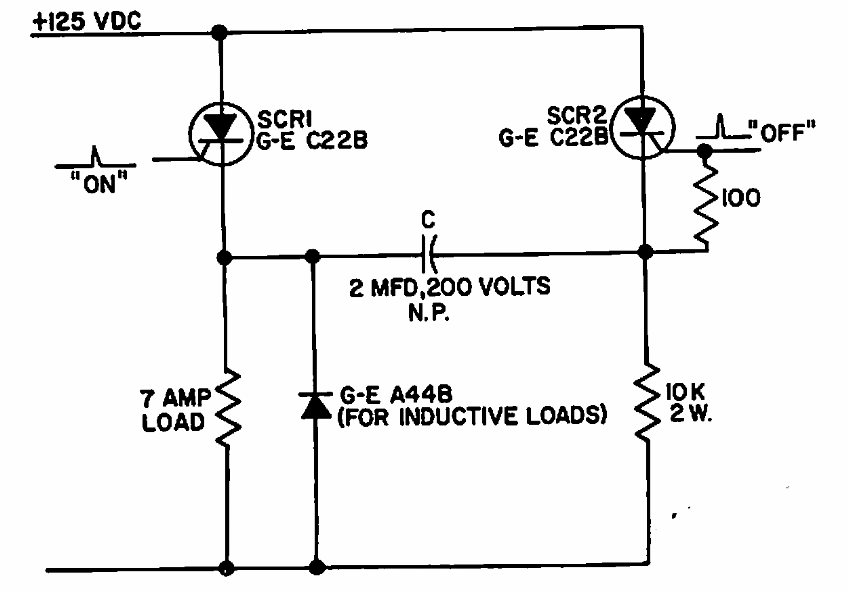

     This circuit was obtained in 1965 General Electric documentation. SCRs can be modern common equivalents. The circuit fires with positive pulses. The load can be up to 7 A.




| Clique na imagem para ampliar |
