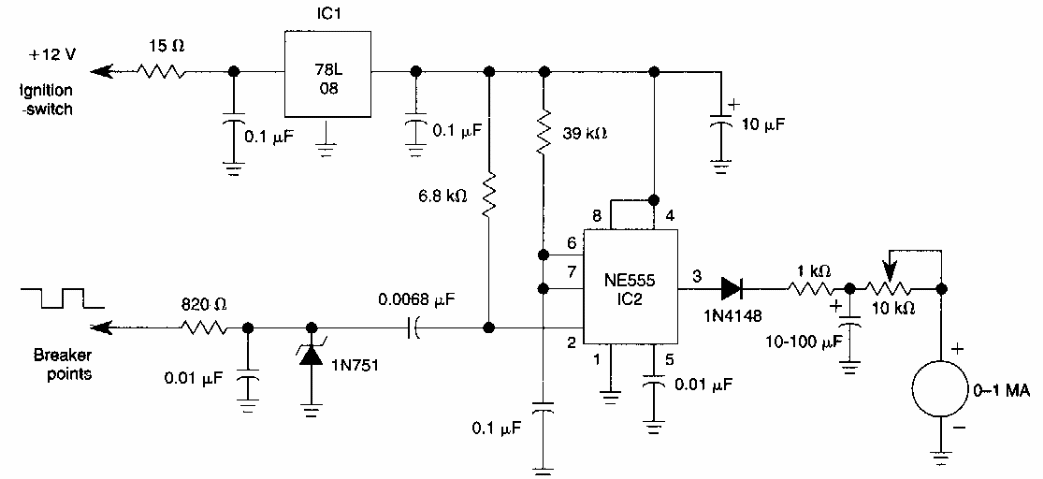

Automotive tachometer (CB7107E)

Details
Written by: Newton C. Braga



     We found this circuit in an American documentation from the 90s. The circuit applies to vehicles with contact breaker.




| Clique na imagem para ampliar |
