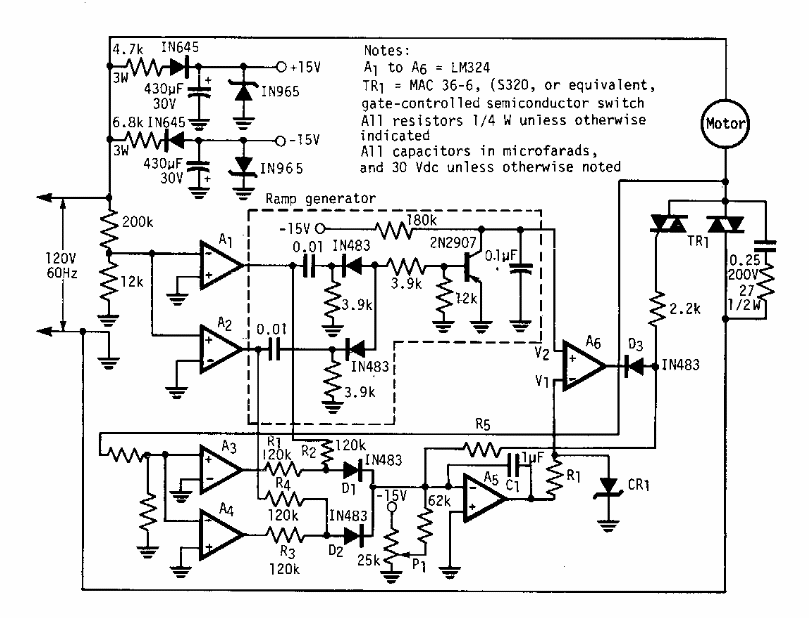

Three-phase power factor controller (CB7156E)

Details
Written by: Newton C. Braga



     Suggested by an Electronic Engineering, this circuit uses components of the time. Modern equivalent components can be used according to the motor current.
