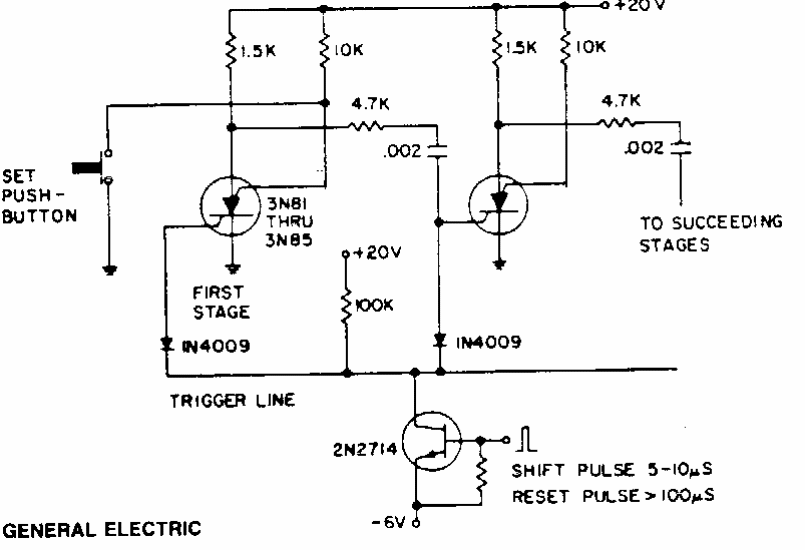

20 kHz ring counter (CB6138E)

Details
Written by: Newton C. Braga



    We found this circuit in an old General Electric documentation. In fact, PUTs are not common components today. The circuit is valid as a reference.




| Clique na imagem para ampliar |
