4W Amplifier (CB6205E)

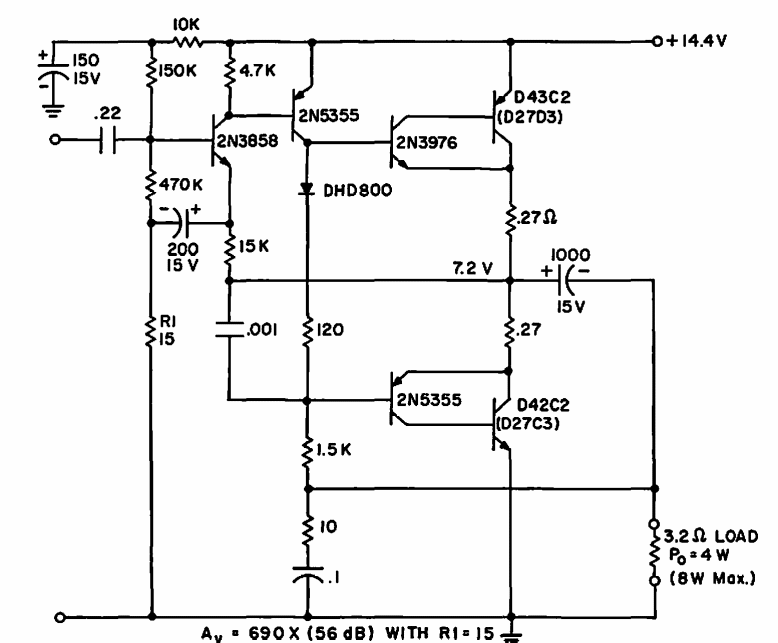

This high gain circuit is from 1969 General Electric documentation. The transistors are of the time, but equivalent types can be tested.
