Tuner with MOSFET (CB6914E)

Details
Written by: Newton C. Braga

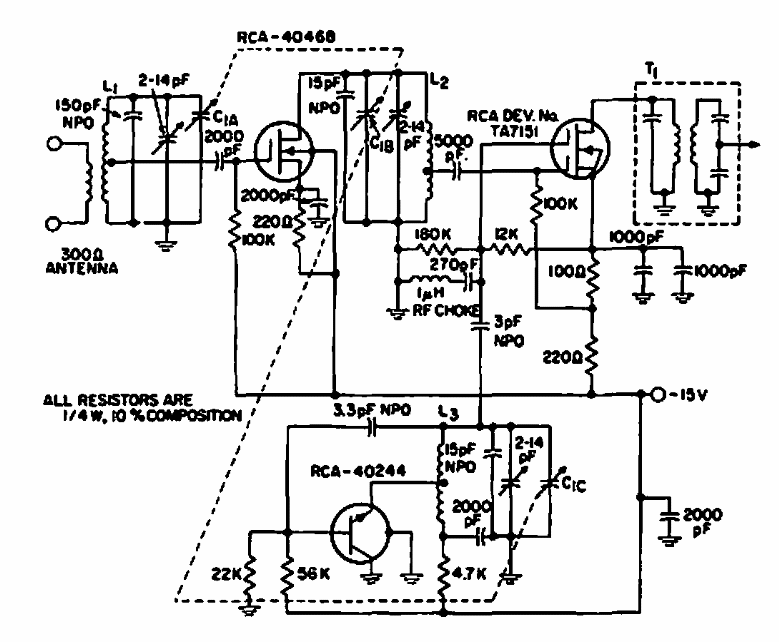

     This circuit serves as a reference for the components used and the time. The circuit is from 1967 RCA documentation. MOSFETs from that time are used.
