Capacitive Ignition (CB6380E)

Details
Written by: Newton C. Braga

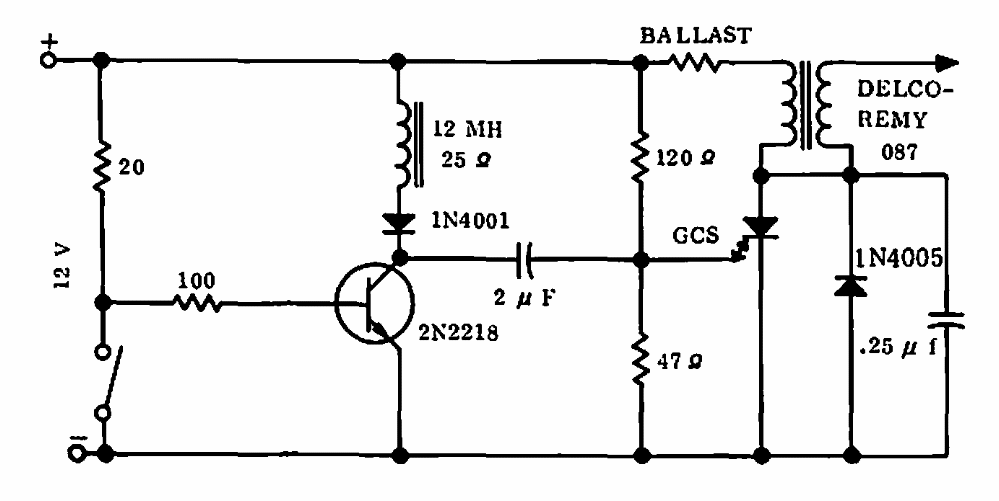

    We found this circuit in a Motorola manual. The circuit has the capacitor charging at 15 to 30 V, then discharging through the coil and generating a voltage that reaches 500 V for the spark plugs.




| Clique na imagem para ampliar |
