SSR Regulator (CB6626E)

Details
Written by: Newton C. Braga

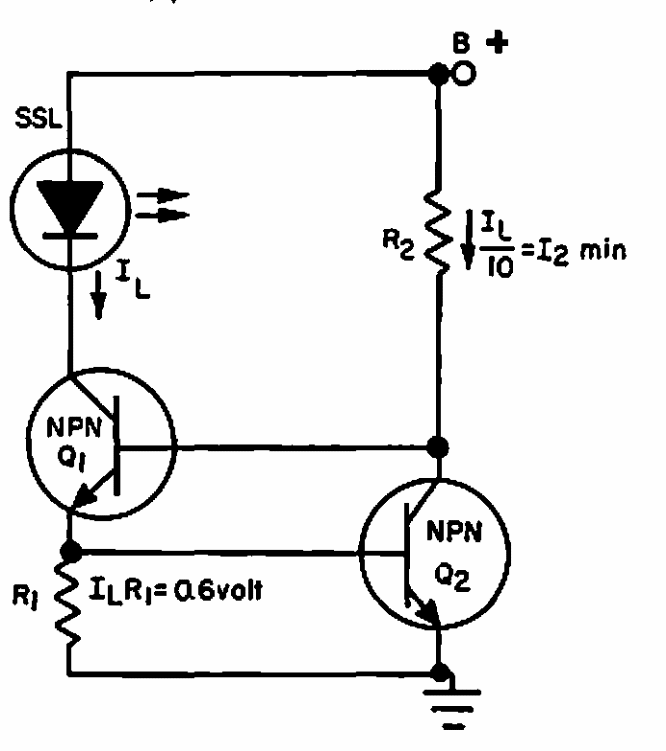

    This circuit uses an LED (called SSL) to regulate current in a configuration with complementary transistors. The circuit is from 1970 General Electric documentation.
