Bistable with MOSFET (CB6813E)

Details
Written by: Newton C. Braga

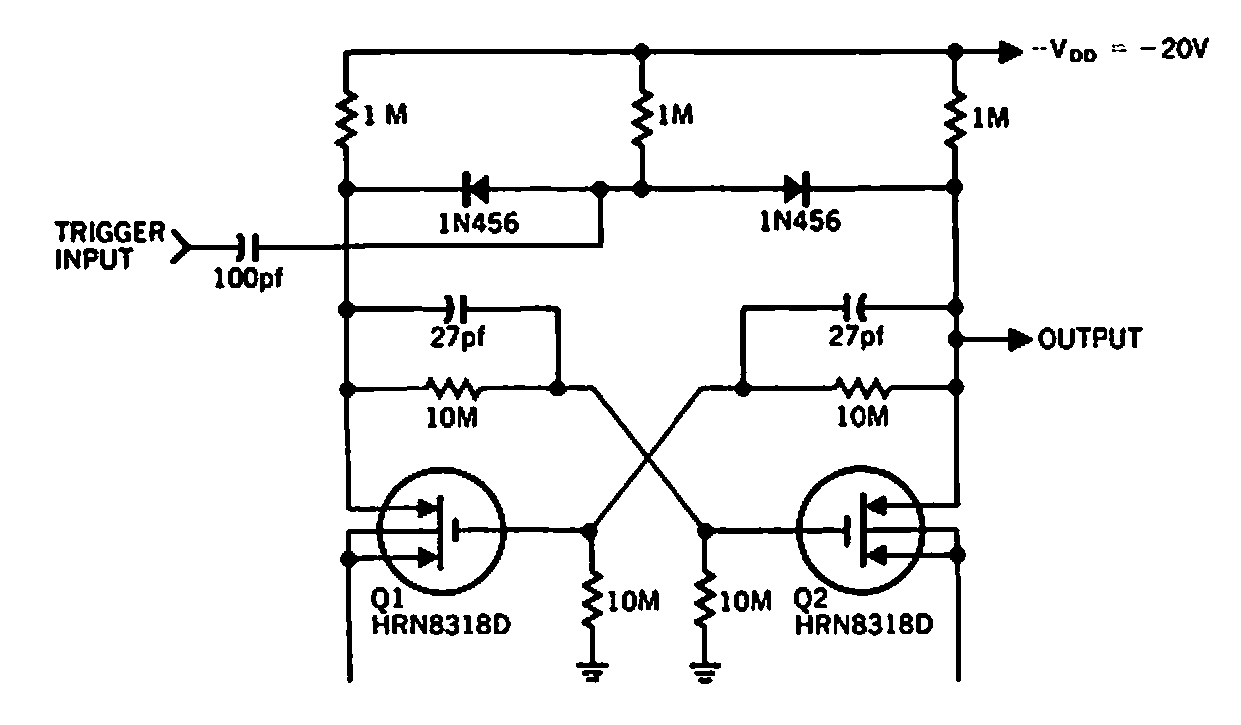

     The circuit shown was obtained in American documentation from 1968. MOSFETs can be replaced by equivalents. The circuit dissipation is less than 0.5 mW.
