Balanced amplifier (CB7396E)

Details
Written by: Newton C. Braga

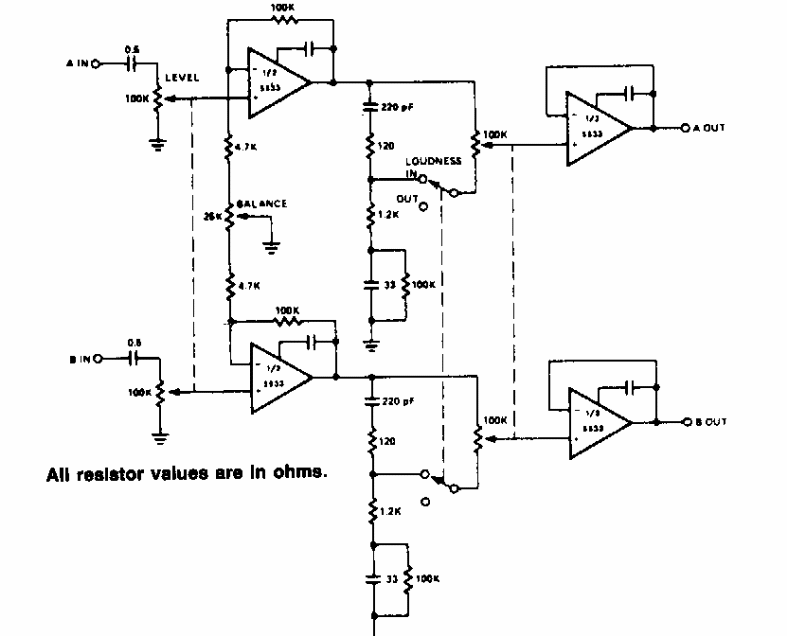

     This circuit was found in Sgnetics documentation from the 80's. The circuit also has loudness control. The power supply must be symmetrical.




| Clique na imagem para ampliar |
