Peak Detector (CB6523E)

Details
Written by: Newton C. Braga

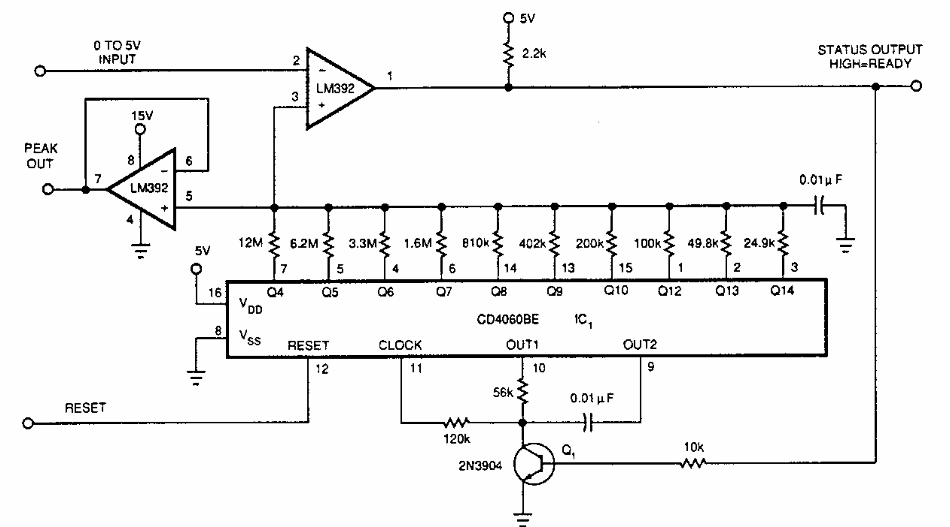

    This circuit was obtained from an 80's EDN. The components used are still common. The circuit can be used as a shield and the frequency is approximately 775 Hz.
