Psychedelic Display (CB6701E)

Details
Written by: Newton C. Braga

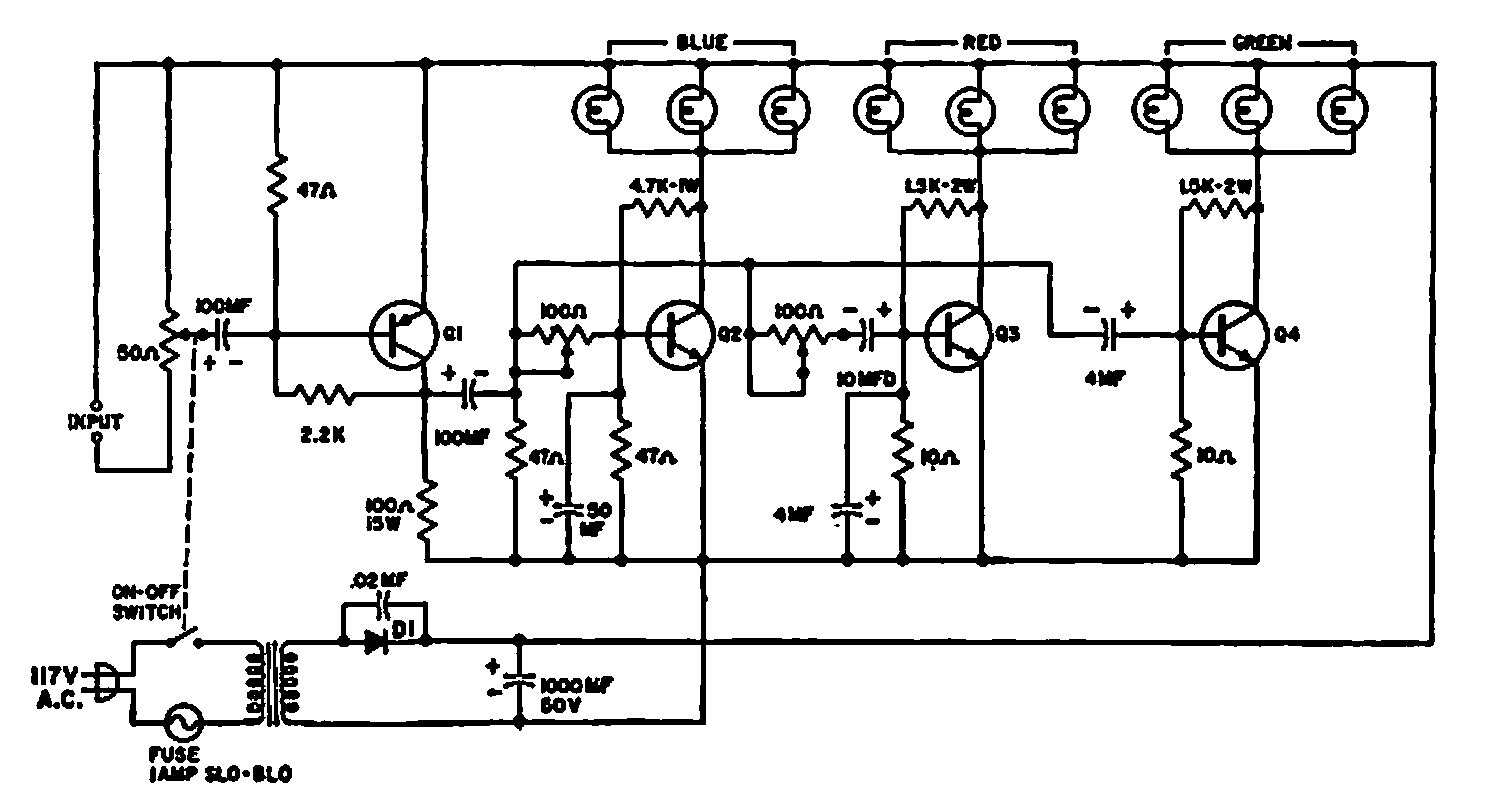

     Found in an Electronics World of 1966 this circuit can be made with current power transistors. It causes colored lamps to flash to the rhythm of the audio signal applied to the input.
