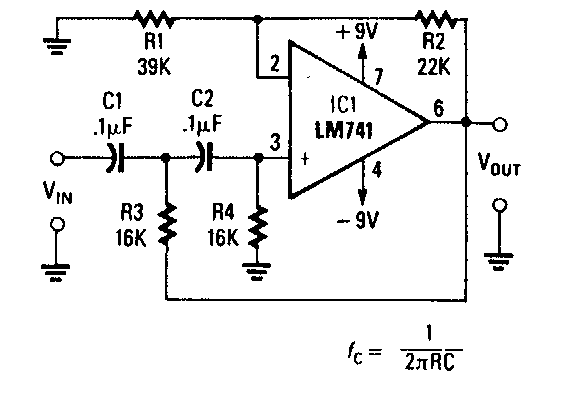

100 Hz high pass filter (CB6935E)
- Details
- Written by: Newton C. Braga
Found in Radio Electronics from the 90s, this circuit uses a 741 and can be changed to other frequencies. The power supply must be symmetrical.
