AC DC indicator (CB7011E)

Details
Written by: Newton C. Braga

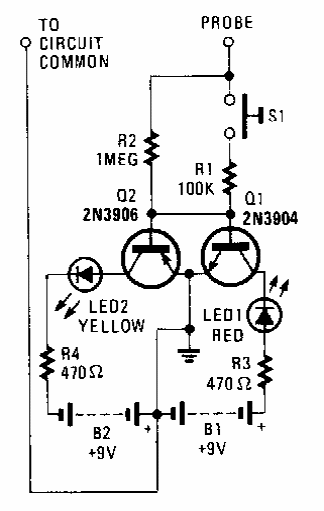

     Found in Radio Electronics, this simple indicator circuit uses general-purpose transistors common today. The LEDs can be different colors.
