Brake light and direction indicator (CB7106E)

Details
Written by: Newton C. Braga

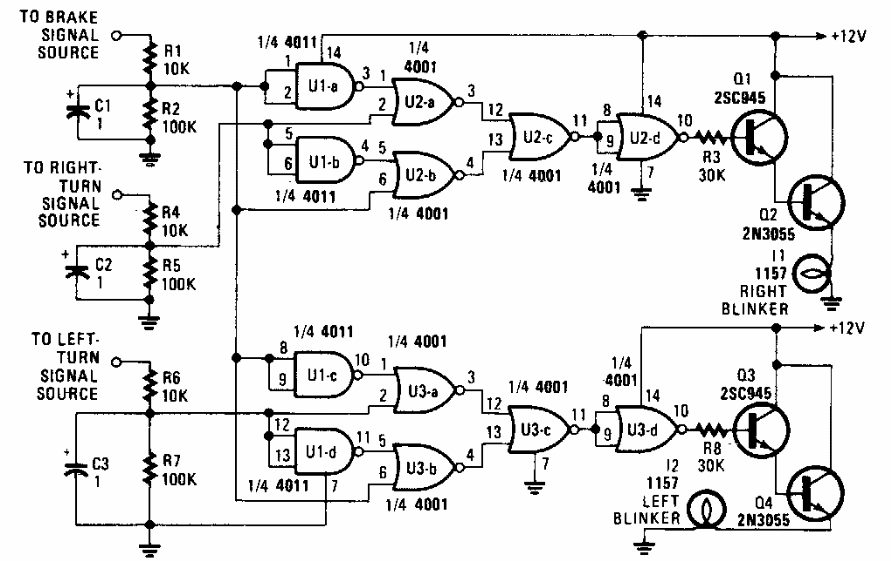

     This circuit was found in a Popular Electronics from the 90s applying to common automotive signaling lamps. The circuit can be adapted to LEDs.
