Magnetic combination lock (CB7245E)

Details
Written by: Newton C. Braga

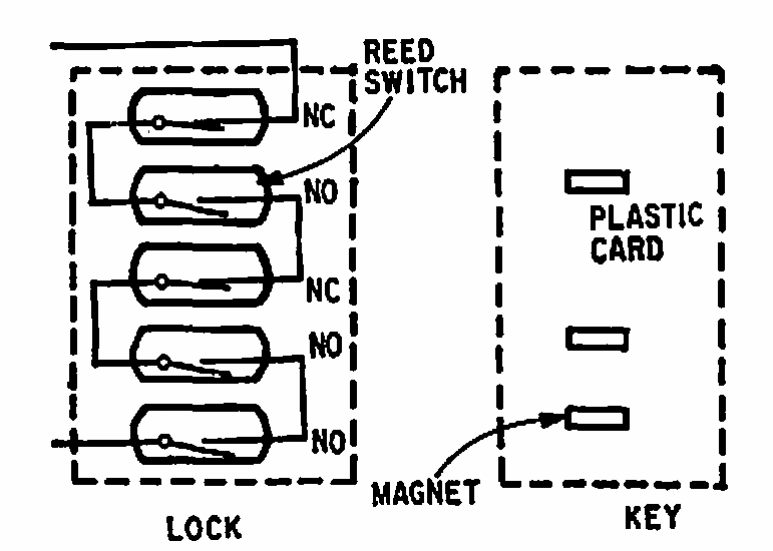

     This circuit was found in a 1968 documentation. It makes use of both NO and NC reed-switches and small magnets attached to a card in the form that results in the drive combination.




| Clique na imagem para ampliar |
