Inverter Amplifier (CB6431E)

Details
Written by: Newton C. Braga

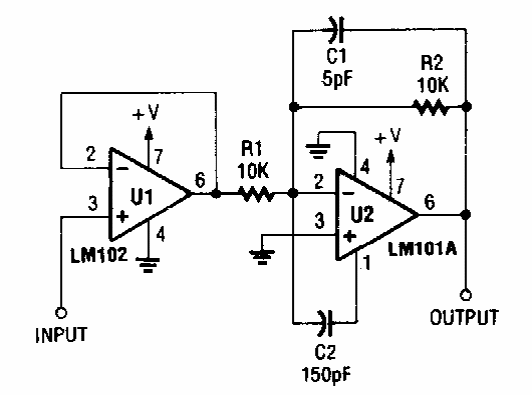

     This high input impedance circuit was found in a Popular Electronics of the 90s. The circuit supports modern operational.
