FM modulator with varicap (CB6913E)

Details
Written by: Newton C. Braga

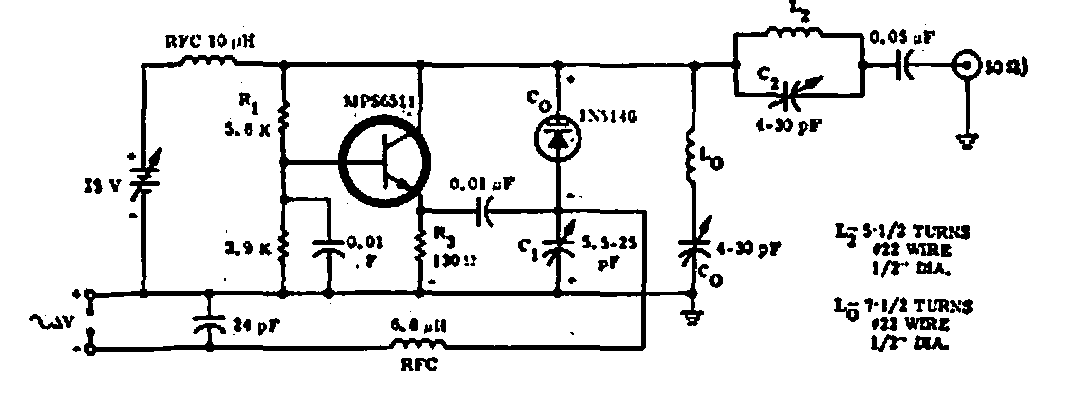

    Using a varactor or varicap, this 1969 Electronics World circuit has a modulation range from 75 kHz to 52 MHz. Modern equivalent components can be used.
