500 mW amplifier using the 741 (CB6991E)

Details
Written by: Newton C. Braga

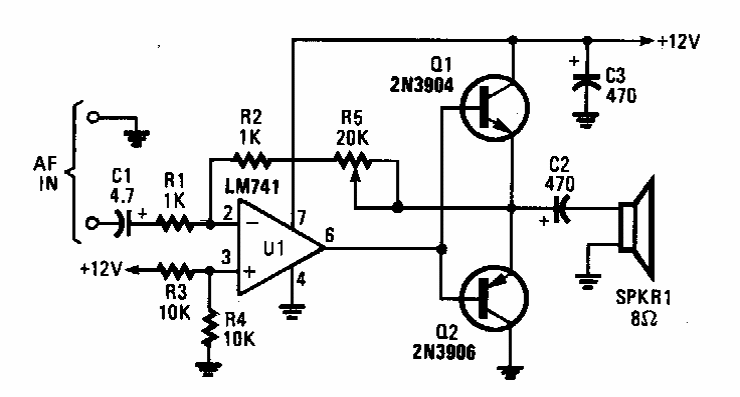

     This circuit was found in 80's Popular Electronics. Transistors are commonly used. The potentiometer R5 adjusts the gain.




| Clique na imagem para ampliar |
