Driver for Nixie Tube (CB6612E)

Details
Written by: Newton C. Braga

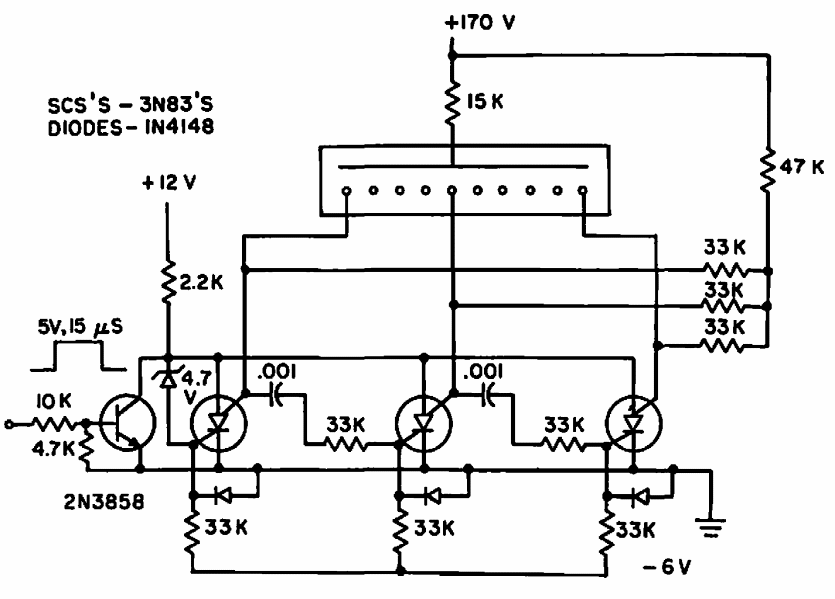

    Suggested by General Electric in 1966 documentation, this circuit uses unusual components today. Observe the supply voltage for the Nixie indicator tubes.
