4 W Amplifier (CB6281E)

Details
Written by: Newton C. Braga

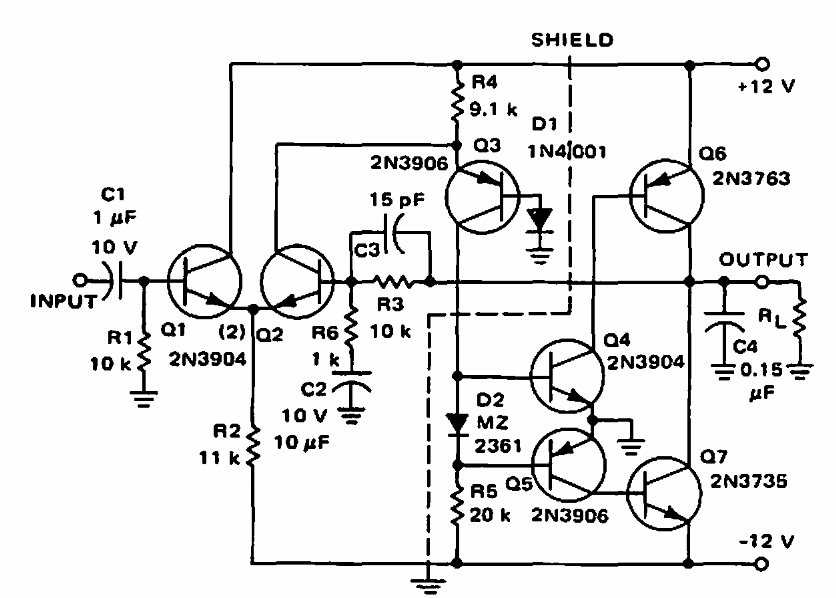

    This circuit is from a 1968 Motorola power circuit manual. The circuit uses transistors of the time. The passing band is 45 Hz to 100 kHz.




| Clique na imagem para ampliar |
