Windshield Wiper Control (CB6339E)

Details
Written by: Newton C. Braga

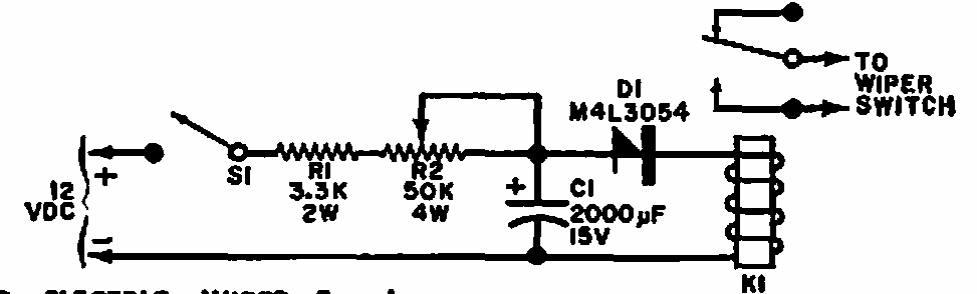

    This circuit of a Popular Electronics is intended to control a wiper. The circuit consists of a relaxation oscillator with unusual component. The relay must be sensitive.




| Clique na imagem para ampliar |
