Battery Charger (CB6394E)

Details
Written by: Newton C. Braga

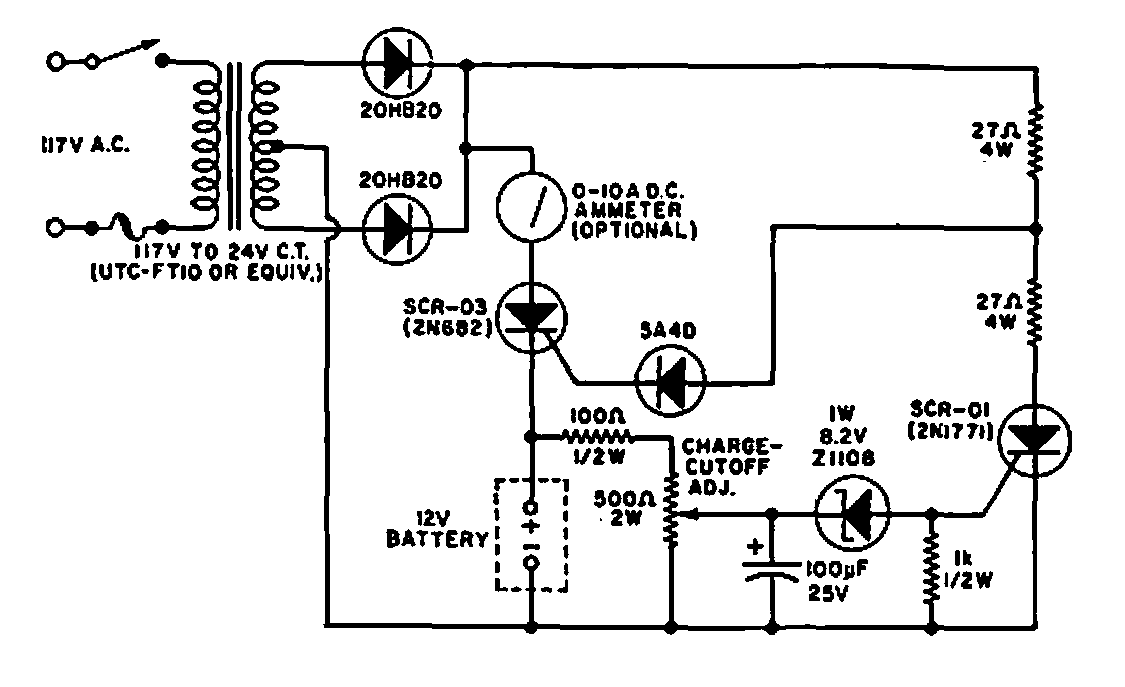

    We found this circuit in a 1968 Electronics World. The potentiometer should be set to trigger the SCR when the battery is fully charged.
