Luminescent panel control (CB6679E)

Details
Written by: Newton C. Braga

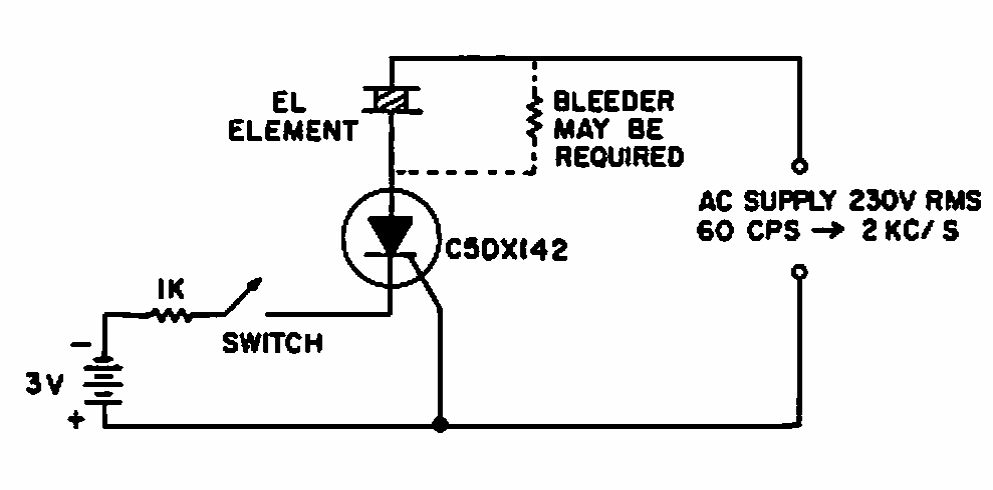

     Found in 1967 General Electric documentation, this circuit is intended for the control of electroluminescent panels used at the time, Valid as a reference for restoration.
