Flashing pumpkin (CB7091E)

Details
Written by: Newton C. Braga

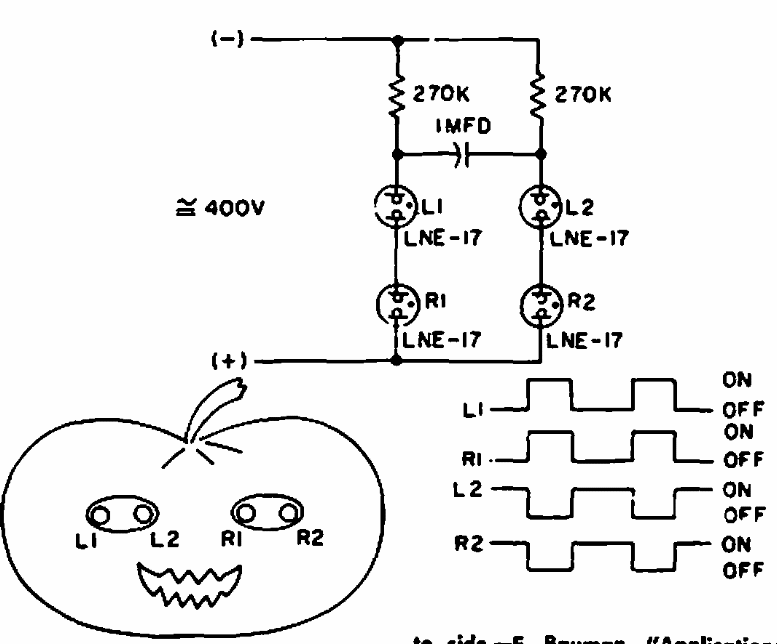

     This decorative object was found in a Signetics documentation from the 60s. The circuit uses neon lamps and must be powered by a high continuous voltage. The current is extremely low.




| Clique na imagem para ampliar |
