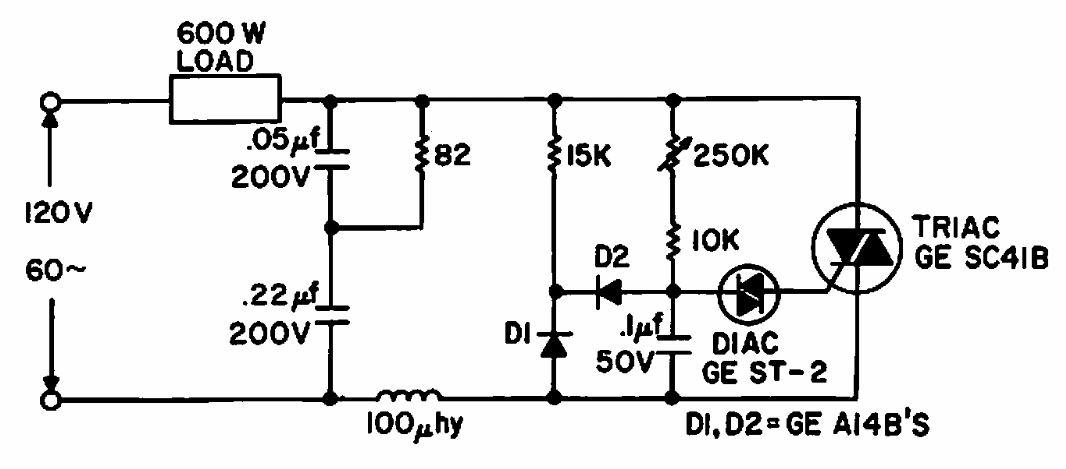

This circuit is from an1966 General Electric documentation. The Triac can be equivalent to 6 A or more, mounted on a good heatsink. Any diac can be used.
| Clique na imagem para ampliar |
600 W Dimmer (CB7215E)
- Details
- Written by: Newton C. Braga
This circuit is from an1966 General Electric documentation. The Triac can be equivalent to 6 A or more, mounted on a good heatsink. Any diac can be used.
